MG ETC SOLAR WATER HEATER

MG ETC SOLAR WATER HEATER

Let us Go Green, Let us Win Together.


MURICKENS GROUP is the manufactures and distributers of Solar water heater. There are two types of solar water heaters are available in market. They are

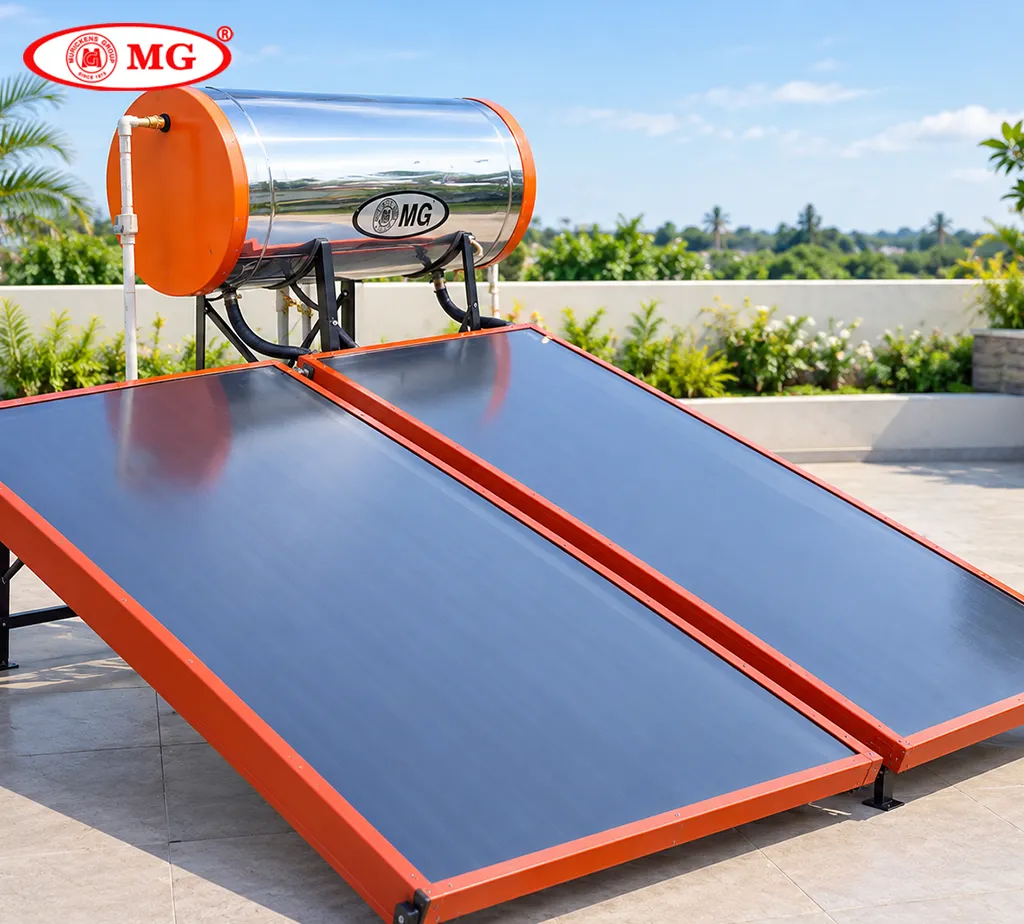

1) FPC (Flat Plate Collector) Model
2) ETC (Evacuated Tube Collector) Model

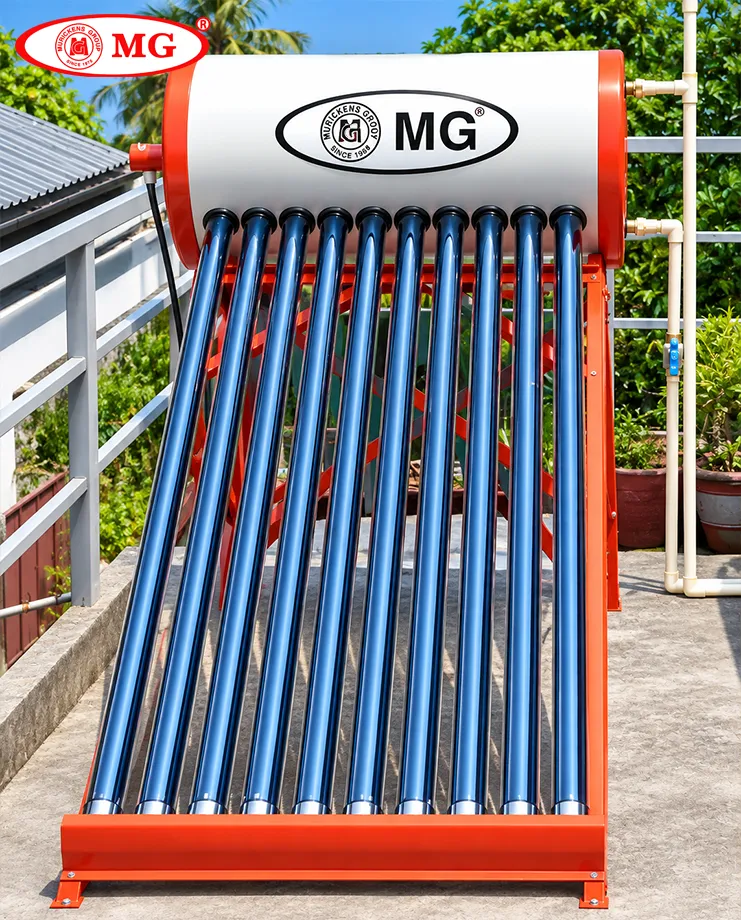

MG Evacuated Tube Collectors are the new version of solar water heater It is very cheap in price. In this system there no electronic or electric current conversion, only heat transmission. ETC collector is made up of rows of parallel, transparent glass tubes. Each tube consists of a glass outer tube and an inner tube called absorber which is covered with a selective coating. The demerits of ETC models are, we get only very low temperature, i.e. heat up 40 ± 5°C. Water leakage through glass ceiling, chance of brakeage of tubes when it is exposed to sunlight, chance to catch fungus inside the tube and consequently lower the heat of water. On rainy season, must have use electrical heater.







MG ETC SOLAR WATER HEATER FEATURES:

► Easy to carry and install. ► Water heated up to 45°C. ► The best way of getting natural hot water for cooking and industrial purpose. ► Evacuated glass tube collector. ► PUF system and glass wool to avoid conduction loss for storage tank. ► Light weight. ► Compact in size. ► Light weight. ► Heat expulsion. ► Compact in size. ► Heat expulsion. ► Fully automatic. ► Sturdy and weather proof design. ► Different Capacity starting from 100 liters to 1000 liters. ► Custom built Solar Water Heater can also be provided.

APPLICATIONS:

► In Restaurants Clubs & Resorts. ► In Hospitals Hostels Institutions. ► In Canteens and Laundries. ► For Swimming pool water heating. ► In most Process Industries. ► In Green buildings to earn renewable energy points. ► As In feed hot water to Boilers. ► For Can washing at Dairy collection centers. ► General washing & cleaning purposes. ► In Agricultural sector.

INSTALLATION GUIDELINES:

(1). Unobstructed sunlight (Shadow free area).
(2). Flat (Preferable) or sloping roof area as requested.
(3). Area should be near to point of usage (bathroom / kitchen) : to avoid long hot water piping and heat losses.
(4). The system (solar collectors) should face south direction.
(5). Fresh (cold) water tank at a height @ 5-7 ft above the system tank height.
(6). 3 years guarantee, onsite after sales service.

MG ETC SOLAR WATER HEATER TECHNICALSPECIFICATION


MG Solar Water Heater ETC Model 100 150 200 250
Usage No. of person 2 to 3 3 to 4 4 to 5 5 to 6
Installation Area(sq. mt) 2.1 3.1 3.8 4.7
Water output temp. (° C) 40 ± 5 °C Under Normal Sunny Conditions
ETC tube Model: No. of Tubes 10 15 20 25
Material Glass 3.3
Coating Selective Absorptive Coating
Glass Sealing Silicon Rubber
Hot Water Tank material (Inner) Stainless Steel SS 304 (Food Grade) - 0.5 mm
Thermal Insulation PUF Insulation
Electric Heater (optional) 2.0 KW with Thermostat
